You can now create checklists that you can place manually, exactly where they belong – either in the 2D map or directly on 3D surfaces in the model. This gives you better overview, precise documentation, and easier follow-up of execution and quality control.
To set up such checklists, do the following:

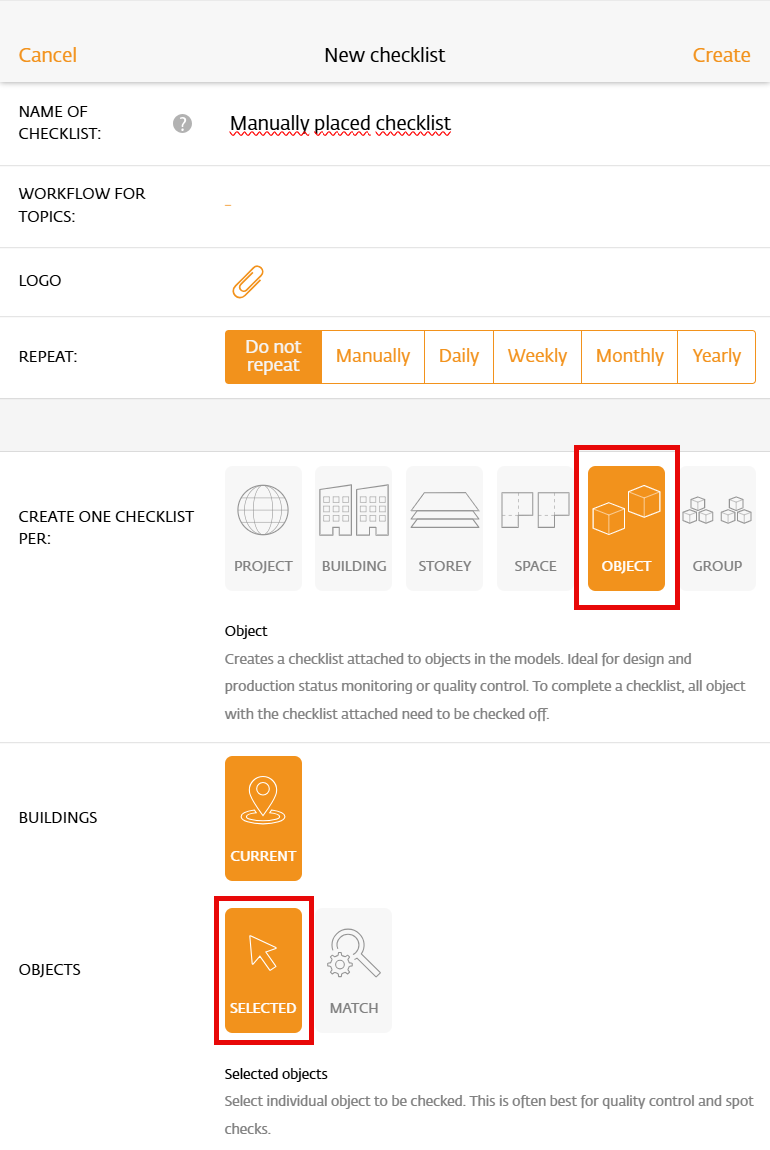

Create a new checklist
Select an object-based checklist
Further down, choose “Selected” object
Build your checklist items
All set!
To use the manual checklist, follow these steps:
Open the checklist you created

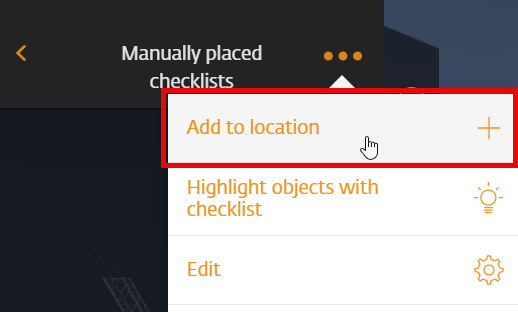

Click on the three dots and choose “Add to location”
- You will now see this in the checklist window

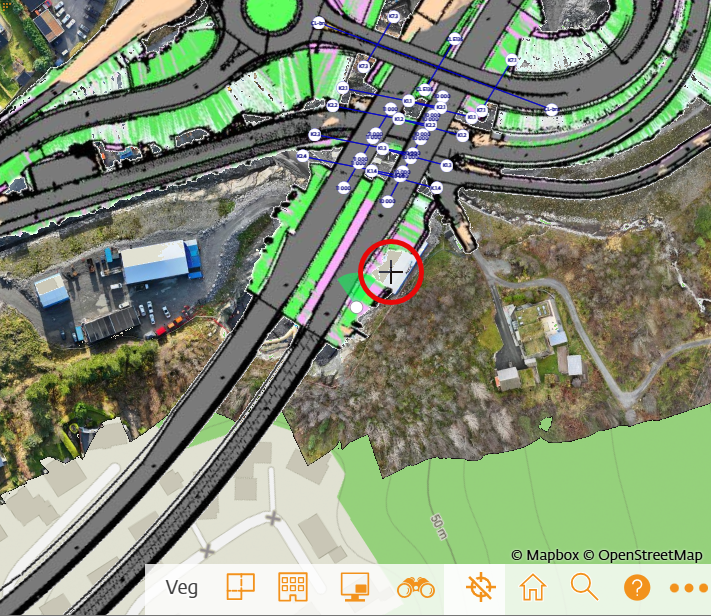

Checklist placement is now activated – click in the 2D map to place your checklist
You can use available map layers to further specify the exact location of the checklist

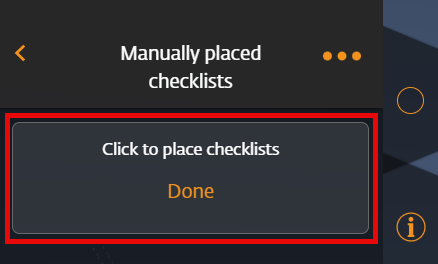

When you are done placing checklists, click Done as shown in the above picture

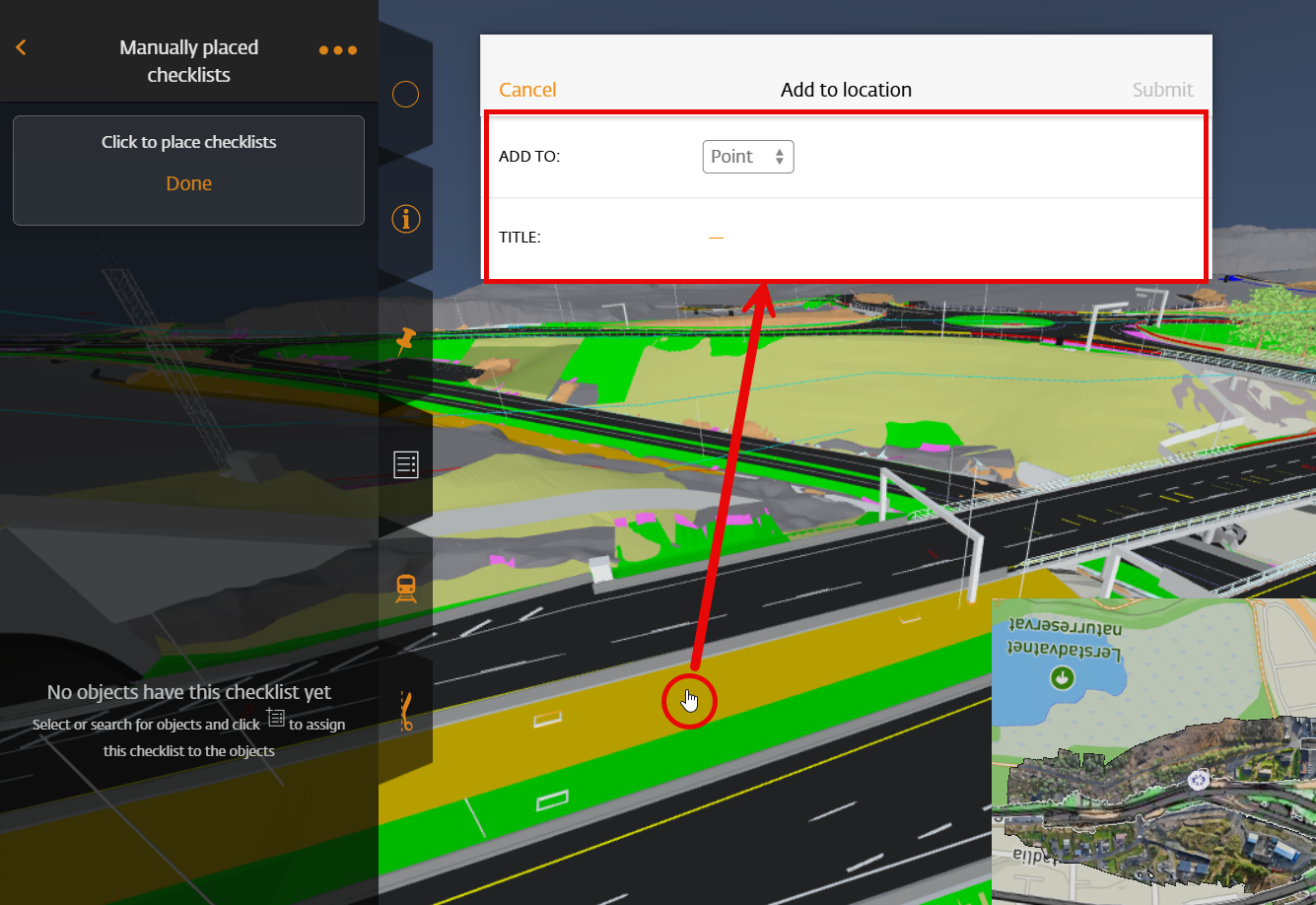

- To place checklists in the 3D window, click anywhere in the model where you want the checklist to be placed
- Choose whether the checklist should be linked to the zone you placed it in, or created as a standalone point
- Enter the checklist name
These checklists are searchable afterwards using the search tool.
